IFE 50-12
IFE pumps

Use

Use and maintenance manual

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow. The IFE series is made of CB754S brass with a stainless steel shaft. This version with support and pulley allows easy coupling with any motor. In addition, an electromagnetic clutch is placed between the pulley and the shaft, which allows you to connect the pump to a running motor and to control the coupling and disengagement of the pump remotely by means of a simple switch. For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:

nautical (bilge, services, cooling, washing, sea water)
agriculture (fungicides, liquid fertilizers, components on agricultural machinery, irrigation)
transports (tankers, road machines, on board water systems)

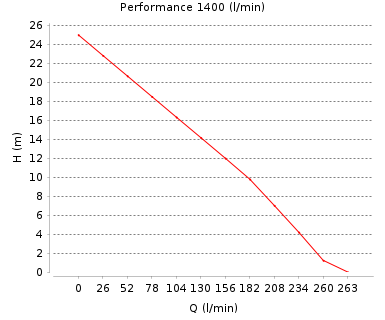

Hydraulic specifications

Maximum capacity : 360 lt/min
Maximum head : 25 m
Gasket on the shaft: Seal
Maximum priming height : 6 m
Threaded ports: 2"
Maximum liquid density 1.1g/cm³ free of hard particles in suspension
Maximum temperature 90°C
Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
Possibility of reversing the pumping flow
Complete with a pair of brass hose fittings for pipes 50 (one straight and one curved)
Possibility of working for short periods with closed pipes
During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Technical specifications

Prepared for connection via pulley 2A148
Between the pulley and the shaft there is an electromagnetically operated 12v dc clutch which allows you to control the engagement and disengagement of the pump remotely via a switch

Material
