AL 20
AL pumps

Use

Wine sector Food sector Chemical Nautical Transport Olive oil Professional

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow.

The AL series, entirely made of AISI 316 stainless steel, is particularly suitable for corrosive and food liquids.

This version with support and pulley allows easy coupling with any motor.

For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:
  • enology (wine, musts)
  • food industry (oil, vinegar, brine, fruit juices, beer wort, milk)
  • chemical industry(corrosive liquids)
  • nautical (bilge, services, cooling, washing, sea water)
  • transports (tankers, road machines, on board water systems)
  • oil industry (olive oil, seed oil)
  • professional use (continuous over time and heavy-duty applications, installation on systems)

Hydraulic specifications

  • Maximum capacity : 29 lt/min
  • Maximum head : 24 m
  • Gasket on the shaft: Mechanical gasket
  • Maximum priming height : 6 m
  • Threaded ports: 3/4"
  • Maximum liquid density 1.1g/cm3 free of hard particles in suspension
  • Maximum temperature 90°C
  • Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
  • Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
  • Possibility of reversing the pumping flow
  • Nylon hose fittings for 20 mm diameter pipes included
  • Possibility of working for short periods with closed pipes
  • During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary

Technical specifications

  • Prepared for connection via pulley 1A72
Material
  • Pump Parts: AISI 316
  • Counterflange: AISI 316
  • Shaft : AISI 316
  • Impeller : AISI 316
  • Gaskets: NBR
  • Mechanical gasket ceramic/graphite/nbr
Pump features
Ports ∅ Hose fitting Priming ability Qmax Hmax
3/4" 20 mm 6 m 29 lt/min 24 m
Overall dimensions
W L H Weight
160 mm 110 mm 116 mm 2.0 kg

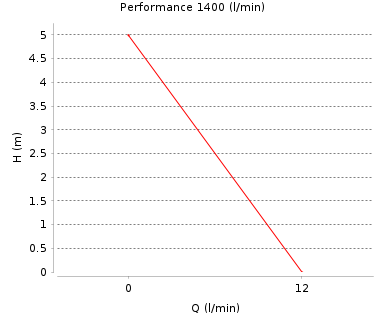

1400 g/min
H (m) 1m 5m 10m
Q 11 lt/min 0 lt/min 0 lt/min
HP 0.1 HP 0.0 HP 0.0 HP

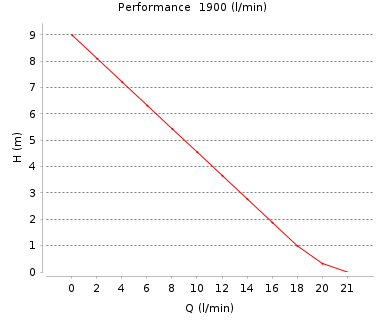

1900 g/min
H (m) 1m 5m 10m
Q 18 lt/min 9 lt/min 0 lt/min
HP 0.1 HP 0.1 HP 0.0 HP

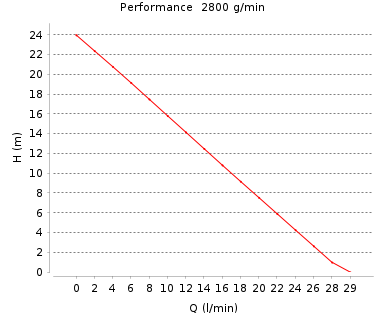

2800 g/min
H (m) 1m 10m 20m 30m
Q 28 lt/min 17 lt/min 5 lt/min 0 lt/min
HP 0.2 HP 0.2 HP 0.3 HP 0.0 HP

Characteristics referring to operation with water at 20 °

Available for the hydraulic part on request

BY-PASS
  • By-pass inox 20
  • Quick disassembly pump
PIPE FITTINGS
  • Stainless steel fittings 20
SEALS
  • EPDM gaskets 20
  • Teflon gaskets 20
  • Viton 20 gaskets


You can complete the AL 20 with...

Related products

We reserve the right to make changes without prior notice.
