EEM 25 MS
EEM electric pumps

Use

Use and maintenance manual

The best solution for the suction and transfer of liquids, thanks to the strong self-priming capacity, the ability to run even with discontinuous presence of the liquid in suction and the reversibility of the flow. The EEM series is made of CB754S brass and, even if cheapness is its strength, it is equipped with a high quality two-phase electric motor equipped with a practical tilting inverter. They are really multifunctional pumps, capable of solving multiple pumping problems. For each application, it is necessary to check the suitability and choose appropriate gaskets.

The product are particularly suitable for use:

domestic environment (water, diesel, water systems, irrigation)

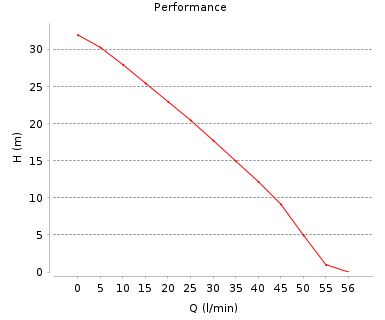

Hydraulic specifications

Maximum capacity : 56 lt/min
Maximum head : 32 m
Gasket on the shaft: Seal
Maximum priming height : 6 m
Threaded ports: 1"
Maximum liquid density 1.1g/cm³ free of hard particles in suspension
Maximum temperature 90°C
Not suitable for aggressive liquids towards pump construction materials and gaskets (see technical specifications)
Not appropriate for the transfer of petrol, solvents and, in general, in environments with risk of explosion and fire
Possibility of reversing the pumping flow
Coupling with impeller free
Complete with a pair of brass hose fittings for pipes 25 (one straight and one curved)
Possibility of working for short periods with closed pipes
During installation, the pump must be filled with liquid, subsequently this operation is no longer necessary
